Hydraulic Male Stud Coupling

Home > Hydraulic Male Stud Coupling

Bhavesh Tube Fittings is a leading manufacturer and supplier based in Dubai, UAE, specializing in high-quality tube fittings for various industries. With a commitment to precision engineering and superior materials, we deliver reliable products that meet international standards. Our Hydraulic Male Stud Coupling is designed for seamless fluid transfer, offering durability, leak-proof performance, and easy installation. Trusted for excellence, we are the go-to partner for critical fluid control solutions across the UAE.

Hydraulic Male Stud Coupling Supplier in Dubai, C.S Male Stud Coupling Price List in Abu Dhabi, Male Stud Coupling with ED Manufacturer in Sharjah, SS Male Stud Coupling In Ajman, Hydraulic Weld Connector Exporter in Abu Dhabi, SS Weld Connector With Weld Nipple and O Ring Manufacturer in Jebel Ali, Hydraulic Male Stud Coupling In Dubai, UAE.

Table of Contents

Hydraulic Male Stud Couplings are typically made from stainless steel, brass, or carbon steel, ensuring corrosion resistance and durability. Depending on the material, they feature high tensile strength, with pressure ratings often exceeding 3000 psi. These couplings offer excellent mechanical properties such as high strength, leak-proof sealing, and vibration and pressure surge resistance. The advantages include ease of installation, reliable fluid transfer, and compatibility with various hydraulic systems, making them ideal for automotive, construction, and manufacturing industries.

Hydraulic Male Stud Coupling Specifications

STANDARD DIN 2353/ ISO 8434-1
MATERIAL MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L,  SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY ,  904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES LL- LOW PRESSURE , L- MEDIUM PRESSURE,  S- HIGH PRESSURE
WORKING PRESSURE (LOW) LL SERIES – 100 BAR
(MEDIUM)L SERIES – 100 BAR TO 500 BAR
(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE LL SERIES – 4LL TO 12LL
L SERIES – 6L TO 42L
S SERIES – 6S TO 38S
CONNECTIONS TUBE TO MALE THREAD , WELD NIPPLE TO MALE THREAD
BODY TYPE BAR STOCK
ACCESSORIES O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE – (-60*C TO 240*)
SURFACE CARBON STEEL -TRIVALENT ZINC PLATED ,  YELLOW PLATTING , BLACK PHOSPHATED,
STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH
TEMPERATURE STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C)
APPLICATIONS & INDUSTRIES CONSTRUCTION  EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR STAINLESS STEEL – ASTM A 276 , ASTM 182
STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Male Stud Coupling Manufacturing Company in Dubai

At Bhavesh Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Male Stud Coupling in Dubai, UAE. Our advanced manufacturing facilities, strategically positioned in the UAE, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hydraulic Male Stud Coupling

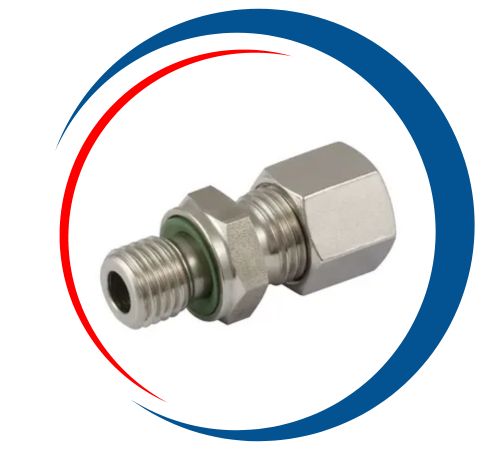

Hydraulic Male Stud Coupling in UAE
Hydraulic Male Stud Coupling

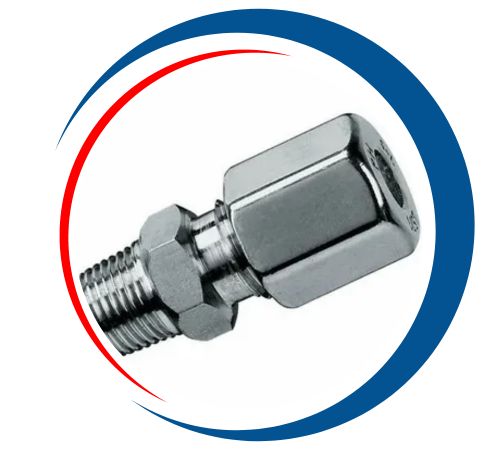

SS Male Stud Coupling in UAE
SS Male Stud Coupling

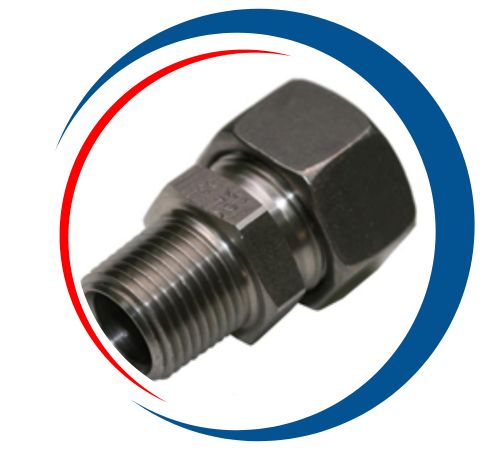

C.S Male Stud Coupling in UAE
C.S Male Stud Coupling

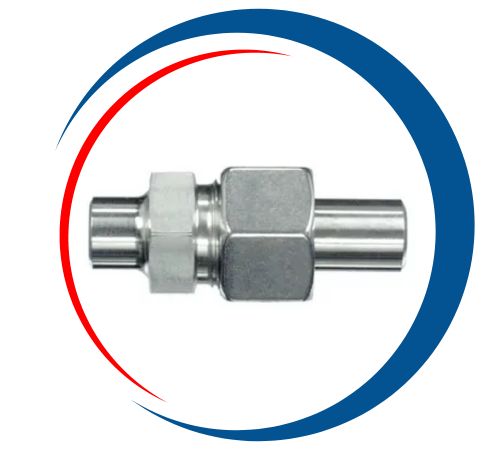

Hydraulic Weld Connector in UAE
Hydraulic Weld Connector

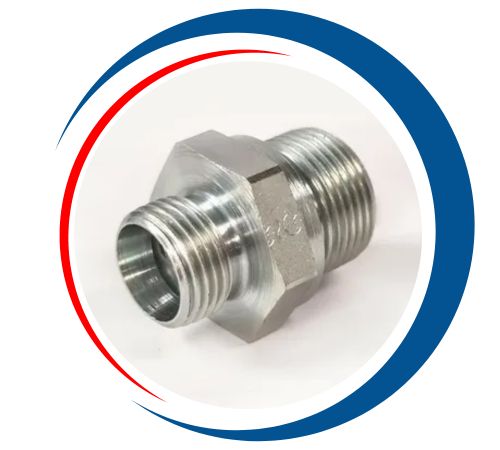

Male Stud Coupling with ED in UAE
Male Stud Coupling with ED

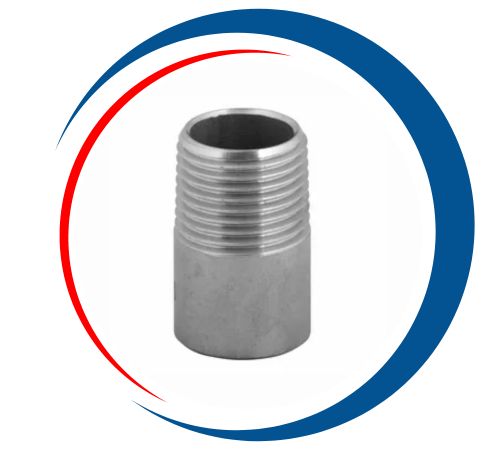

SS Weld Connector With Weld Nipple and O Ring
SS Weld Connector With Weld Nipple and O Ring

Dimension of Hydraulic Male Stud Coupling

DIAM D C E F F1 DIM G H HMAXI H1 BODY SEALING WASHER MINIMUM WORKING TEMPERATURE MAXIMUM WORKING TEMPERATURE
4 MM G1/8 6,5 MM 13 MM 10 MM 16,5 MM 8 MM brass nitrile -40 CE 100 CE 0,015 KG 10
4 MM G1/8 5,5 MM 13 MM 10 MM 14 MM 17,5 MM 9 MM brass nitrile -40 CE 100 CE 0,016 KG
4 MM M5x0,8 5 MM 10 MM 10 MM 16,5 MM 8 MM brass nitrile -40 CE 100 CE 0,01 KG 10
4 MM M7x1 6,5 MM 10 MM 10 MM 16,5 MM 7,5 MM brass nitrile -40 CE 100 CE 0,013 KG 10
4 MM M8x1 6,5 MM 11 MM 10 MM 16,5 MM 7,5 MM brass nitrile -40 CE 100 CE 0,013 KG 10
5 MM G1/8 6,5 MM 13 MM 12 MM 17,5 MM 8,5 MM brass nitrile -40 CE 100 CE 0,018 KG 10
5 MM G1/8 5,5 MM 13 MM 12 MM 14 MM 18,5 MM 9,5 MM brass nitrile -40 CE 100 CE 0,027 KG
5 MM M8x1 6,5 MM 11 MM 12 MM 17,5 MM 8 MM brass nitrile -40 CE 100 CE 0,015 KG 10
5 MM M10x1 6,5 MM 14 MM 12 MM 17,5 MM 8,5 MM brass nitrile -40 CE 100 CE 0,02 KG 10
6 MM G1/8 6,5 MM 13 MM 13 MM 18 MM 8,5 MM brass nitrile -40 CE 100 CE

Hydraulic Male Stud Coupling Exporter in Dubai, C.S Male Stud Coupling Price List in Abu Dhabi, Male Stud Coupling with ED Manufacturer in Sharjah, Hydraulic Male Stud Coupling In Ajman, Male Stud Coupling with ED Supplier in Abu Dhabi, SS Male Stud Coupling Manufacturer in Jebel Ali, Hydraulic Male Stud Coupling In Dubai, UAE.

Contact us to get a quick quote for your requirement.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hydraulic Male Stud Coupling Supplier in Dubai, UAE

Bhavesh Tube Fittings is a leading supplier and stockist of premium Hydraulic Male Stud Coupling in Dubai, UAE. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Male Stud Coupling Uses

Hydraulic Male Stud Couplings are widely used in hydraulic systems for connecting pipes or hoses to components like pumps, cylinders, and valves. They ensure a secure, leak-free connection under high pressure, making them ideal for industrial machinery, construction equipment, and automotive systems. These couplings facilitate efficient fluid flow while minimizing vibration and ensuring easy assembly and disassembly. Their robust design allows for reliable performance in harsh environments, including oil and gas, agriculture, mining, and marine industries, where durability and reliability are crucial.

Hydraulic Male Stud Coupling Manufacturer in Dubai, Hydraulic Weld Connector Exporter in Abu Dhabi, Hydraulic Male Stud Coupling Supplier in Sharjah, SS Weld Connector With Weld Nipple and O Ring Supplier in Ajman, Hydraulic Male Stud Coupling In Sharjah, Male Stud Coupling In Ajman, Hydraulic Weld Connector Price List in Jebel Ali, Male Stud Coupling with ED Manufacturer in Dubai, Hydraulic Male Stud Coupling Exporter in Abu Dhabi, UAE.
